Exercise 3.2: Protection from common exploit vectors¶

Overview¶

In this exercise you will attack the vulnerable application. Then apply the blocking policy and observe the results.

Task 1 - Exploring an attack¶

1. Before we begin clear all previous logs by going to Security > Event Logs > Application > Requests. Click the checkbox to select all. From the drop down that appears to the right click the down arrow and select Delete all requests.

2. Within Chrome click on the three dots in the upper right and choose New Incognito window

3. Click on the Webgoat bookmark from the bookmark bar to get to the WebGoat application
4. At the username prompt try entering a SQL query for the username and the letter a for the password

or 1='1

5. Return to the BIG-IP Go to Security > Event Logs > Application > Requests.
6. You will find an entry there for the login page login attempt.

7. Return to the WebGoat application and login with credentials f5student and f5DEMOs4u!

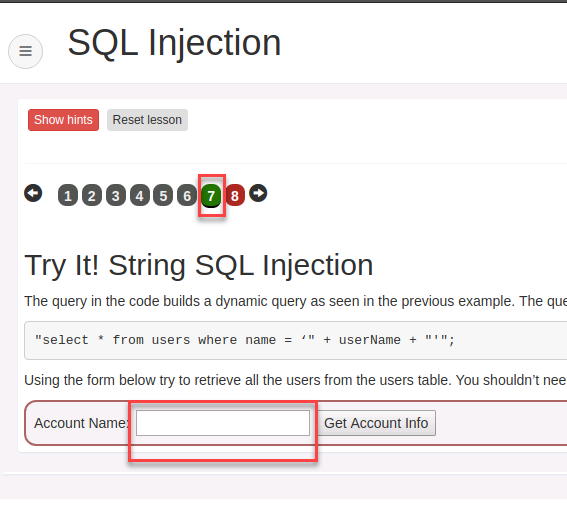

8. From the left menu go to Injection Flaws –> SQL Injection and select exercise 7

9. In the account name field try an injection attack

%' or 1='1

10. You will be able to see a wealth of information

11. Return to the BIG-IP Go to Security > Event Logs > Application > Requests, clear the illegal filter and review the alert.

12. Time to Block! Go to Security > Application Security > Policy Building > Learning and Blocking settings

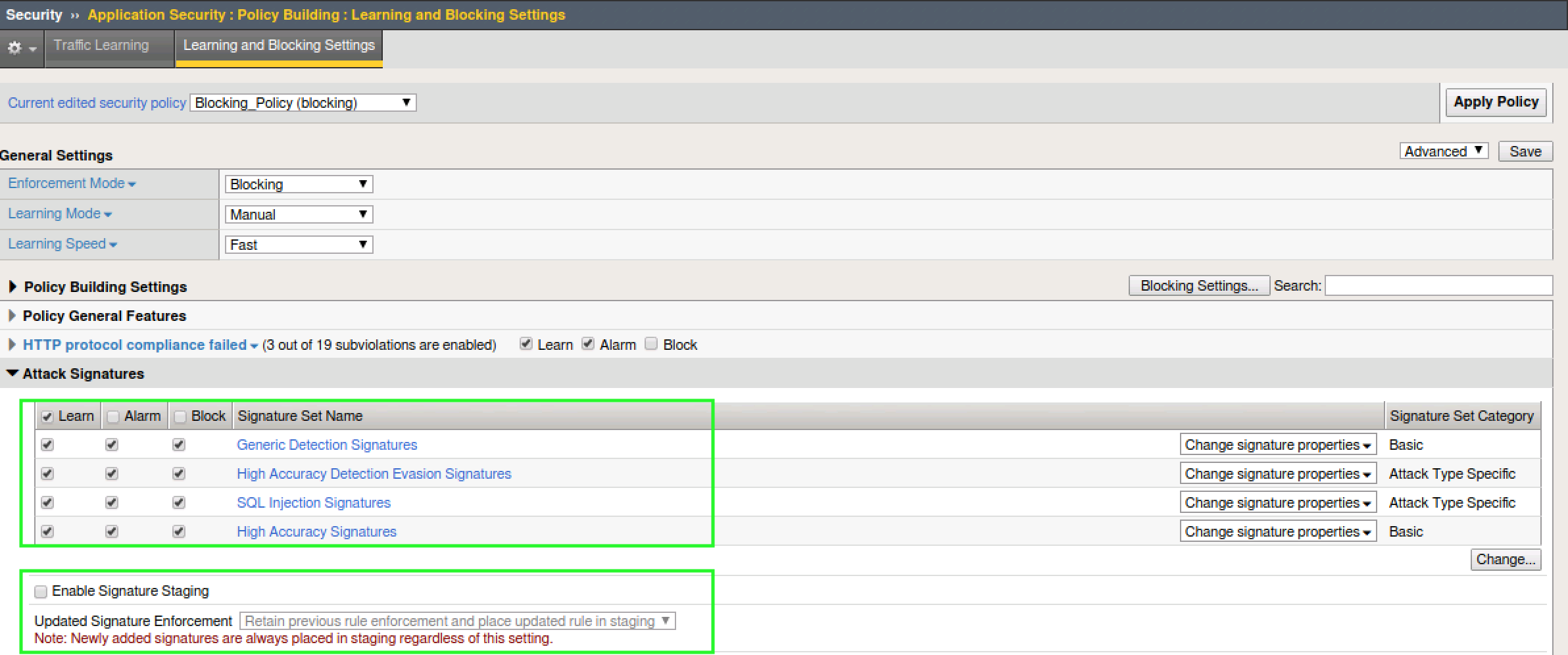

13. Click on the carrot next to Attack Signatures and click on the Block check box at the top (this will turn on blocking for all the signatures). Make sure signature staging is still set to diabled then click Save and Apply Policy. Your policy should now look like this.

14. Make sure to save and apply policy.

15. On the BIG-IP navigate to Security > Event Logs > Application > Requests
16. Open a New Incognito Window in Chrome
17. Click the bookmark for Login page
18. At the username prompt try entering a SQL query for the username and the letter a for the password

or 1='1

19. Repeat steps 7-9

19. Return to the ASM Event Logs and you should see both attacks as shown here

20. Click on the log entry for /webgoat/login and examine the request.
21. Change from Basic to All Details and will see more details regarding the request

22. Click on Attack signature detected

Task 2 - ZAP THE APP!¶

1. Open ZAP Proxy by locating the icon on the top bar - This will take several seconds to launch so please do not multi-click.

2. Select No, I do not want to persist this session at this moment in time.

3. In the upper left corner of ZAP, change the mode to ATTACK and accept the popup. Enter the following URL in to the URL to Attack field and click Attack:

https://webgoat.f5demo.com/WebGoat/login

4. Return to the BIG-IP and examine the Event Logs.
5. Take a look at the various attacks conducted by ZAP and blocked by ASM. Examine the log entries and what signature prevented the attack from occurring. You can explore the documentation on the signature as well.

What additional functions can you turn on to prevent some of the other attacks? How would you turn these on? Would this tool have even worked if Proactive Bot Defense was enabled? Answer: Absolutely not and your ASM even logs wouldn’t be littered by these automated attempts that can quickly grow into the millions per day.

Bonus¶

Go to Security > Application Security > Policy Building > Traffic learning

Explore the Learning suggestions and Traffic Summary page.

Locate the Enforcement Readiness section.

Click on the numbers. This will take you to the learning and blocking settings page. This shows you the settings that could be turned on to better protect your application.

To the left you will find a number of learning suggestions. As traffic traverses your application these learning suggestions will eventually reach higher percentages.

Click on a learning suggestion to explore. You will learn how many events have been triggered and give you the option to accept the suggestion, delete the suggestion or ignore.
